【USA】 4 Axis Nema 23 Stepper Motor Driver Mach3 USB Control Board 24V DC CNC Kit

About this item

This is a full 4-axis stepper motor and driver package built for CNC routers, engravers and milling machines. It bundles four Nema23 23HS8430 motors with four TB6600 drivers, a Mach3-compatible USB control board, a 24V/350W power supply, and the cables plus setup CD needed to wire everything together. The motors deliver 1.8° steps and 270 oz-in holding torque, while the TB6600 drivers offer adjustable microstepping and overheat/short-circuit protection. The control board adds 4-axis linkage, spindle speed control via 0-10V output, and relay outputs for spindle and pump control.

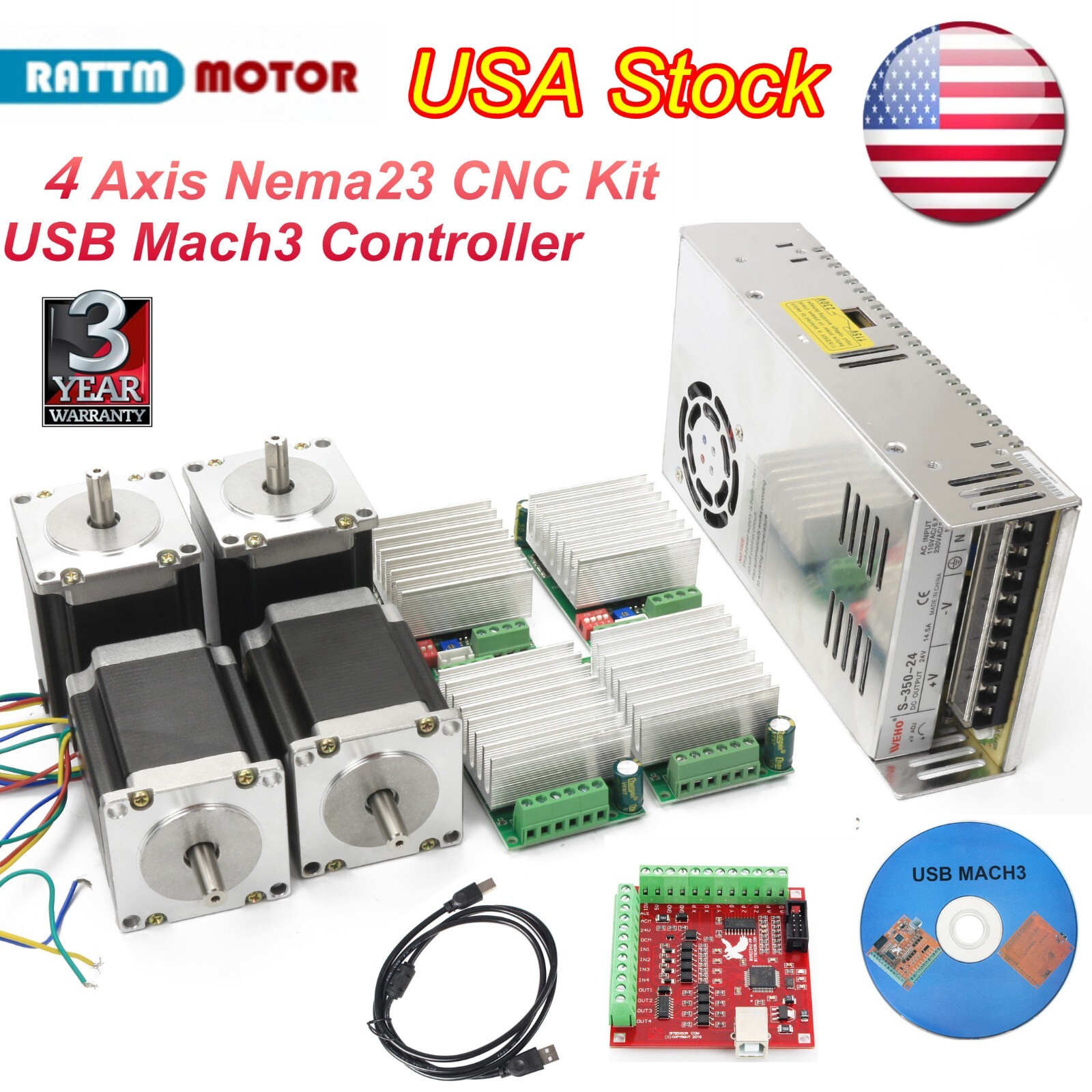

• Complete CNC kit: 4x Nema23 23HS8430 stepper motors, 4x TB6600 drivers, 1x 4-axis USB Mach3 control board, 24V/350W power supply, USB cable and CD with driver/software
• Each motor: 1.8° step angle, 76mm body, 4-wire hookup, 3A per phase, holding torque 270 oz-in (1.8 N.m / 18 kg.cm)
• TB6600 driver handles up to 4.5A output, works on DC 10-45V (24V recommended), with adjustable microstepping up to 1/16
• Mach3 board supports 4-axis linkage, 100KHz max pulse rate, 0-10V spindle speed output, and handwheel connection, built on 32-bit STM MCU
• Board includes 4 isolated relay outputs for spindle start/direction and pump control
• Brand: RATTM MOTOR, made in China

Specifications

Brand

RATTM MOTOR

Model

23HS8430/TB6600

Current Type

DC

Holding Torque

270 oz-in/180N.cm

Full Step Angle

1.8° (200 Steps)

Country of Origin

China

Step Angle(degrees)

1.8

Wiring Configuration

4 Wires

Nominal Rated Input Voltage

24 V
