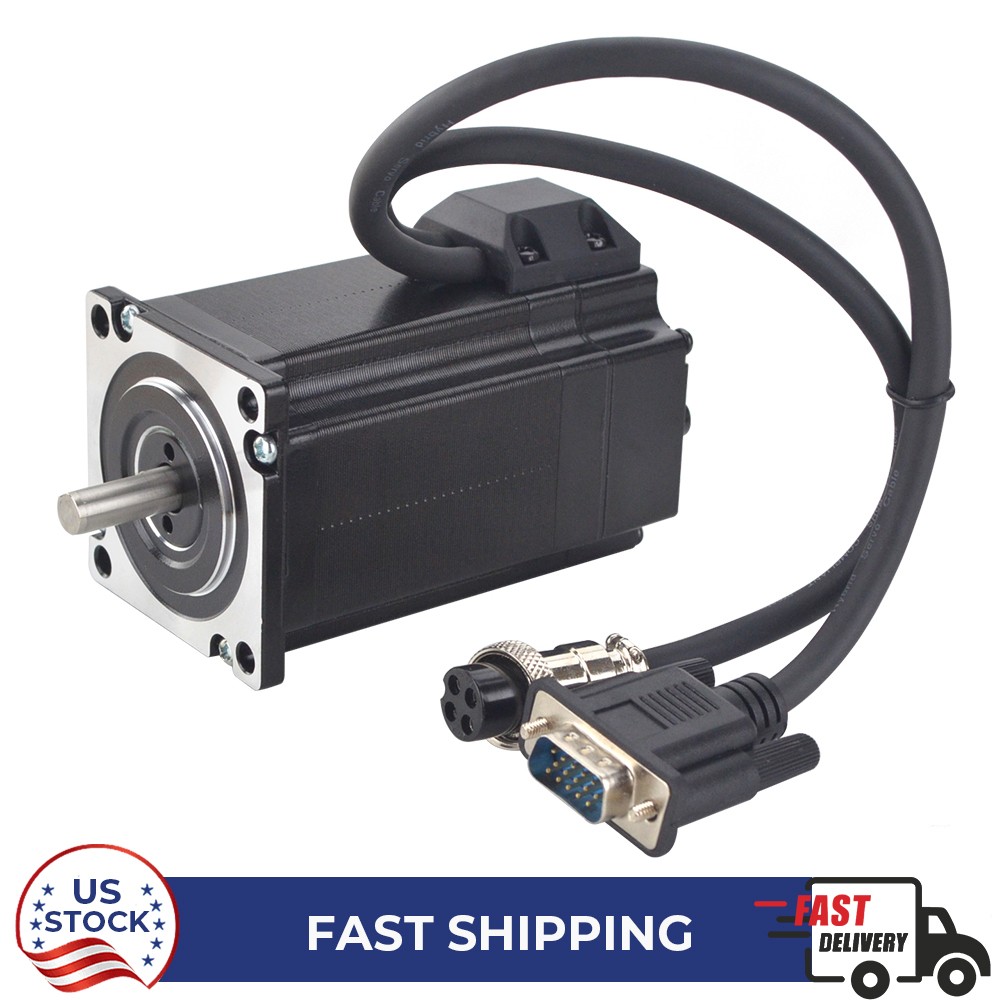

STEPPERONLINE Nema 23 Closed Loop Stepper Motor 283oz.in w/ 1000PPR Encoder CNC

Listed on eBay by mybotonline · 100% positive

Landed price to your door

$105

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $176Standard $115~1.1 kg

Includes the item, international shipping, customs and handling.

Ish7anli does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

This NEMA 23 stepper motor pairs closed-loop control with a 1000PPR optical encoder, giving you position feedback for more accurate CNC work. It delivers 2Nm of holding torque at 5.0A per phase and runs on a 24-48VDC supply through a standard 4-wire bipolar setup. Built on a 57x57mm frame with an 8mm D-cut shaft, it's rated IP40 and uses Class B insulation for reliable operation under load.

NEMA 23 closed loop stepper motor (MPN 23E1K-20) with built-in 1000PPR optical incremental encoder for CNC and automation use
2Nm (283oz.in) holding torque, 1.8° step angle (200 steps/rev), rated 5.0A per phase
Runs on 24-48VDC, 4-wire bipolar wiring, phase resistance 0.4 ohm, inductance 1.8mH ±20%
57x57mm frame, 98.3mm body length, 8mm D-cut shaft (21mm long, 15mm flat), weighs 1.06kg
IP40 rated housing, Class B insulation rated to 130°C, encoder runs on 5V differential signal (2 channels)

Specifications

EAN: 0742803044989
MPN: 23E1K-20
UPC: 742803044989
Brand: StepperOnline
IP Rating: IP40
Inductance: 1.8mH ± 20%(1KHz)
Shaft Type: D-Cut
Current Type: DC
Encoder Type: Optical Incremental
Holding Torque: 2Nm(283.22oz.in)
Shaft Diameter: 8mm/0.31inch
Full Step Angle: 1.8° (200 Steps)
Insulation Class: B (Max 266°F)
Country of Origin: China
D-cut Shaft Length: 15mm/0.59inch
Encoder Resolution: 1000PPR
Resistance per Phase: 0.4ohms
Wiring Configuration: 4-Wire Bipolar
Output Signal Channels: 2 channels
Rated Current per Phase: 5A
