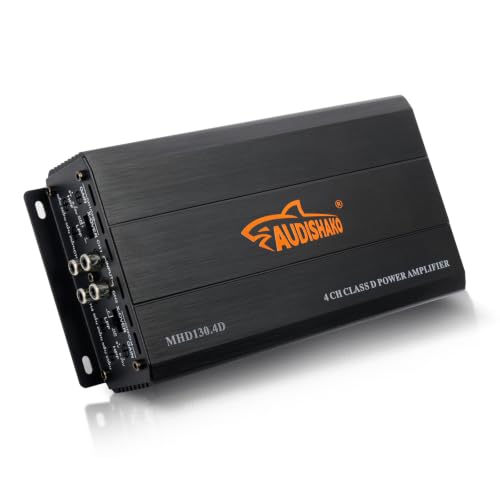

AUDISHAKO MHD130.4D 2400 Watt 4-Channel Full Range Car Audio Amplifier

About this item

The AUDISHAKO MHD130.4D is a 2400W-rated 4-channel full-range car amplifier built around the Infineon IRS2093M chip for a clean, low-noise signal. Each channel pair can be set to HP, LP, or Full mode with an adjustable 50–250Hz crossover, giving you flexible control over front, rear, or bridged subwoofer setups. Its Class D design runs up to 95% efficient and uses an aluminum chassis to manage heat during extended use. Compact dimensions and RCA inputs with 0.25–8V sensitivity make it straightforward to pair with aftermarket head units, DSPs, or line output converters.

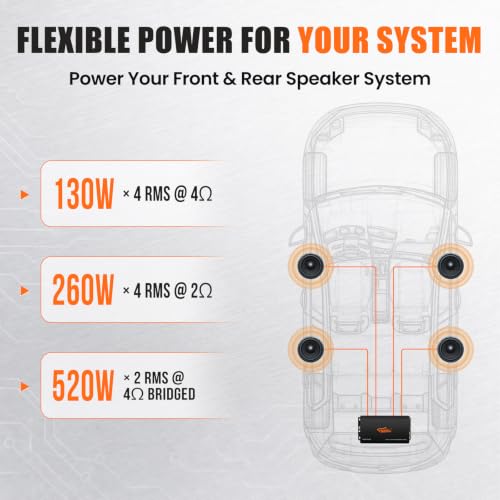

• 4-channel Class D amp: 130W x 4 RMS at 4Ω, 260W x 4 RMS at 2Ω, or 520W x 2 RMS bridged at 4Ω
• Infineon IRS2093M chipset gives >96dB SNR and <0.05% THD for clean, low-distortion sound
• Per-channel HP/LP/Full switch plus adjustable 50–250Hz crossover for custom tuning

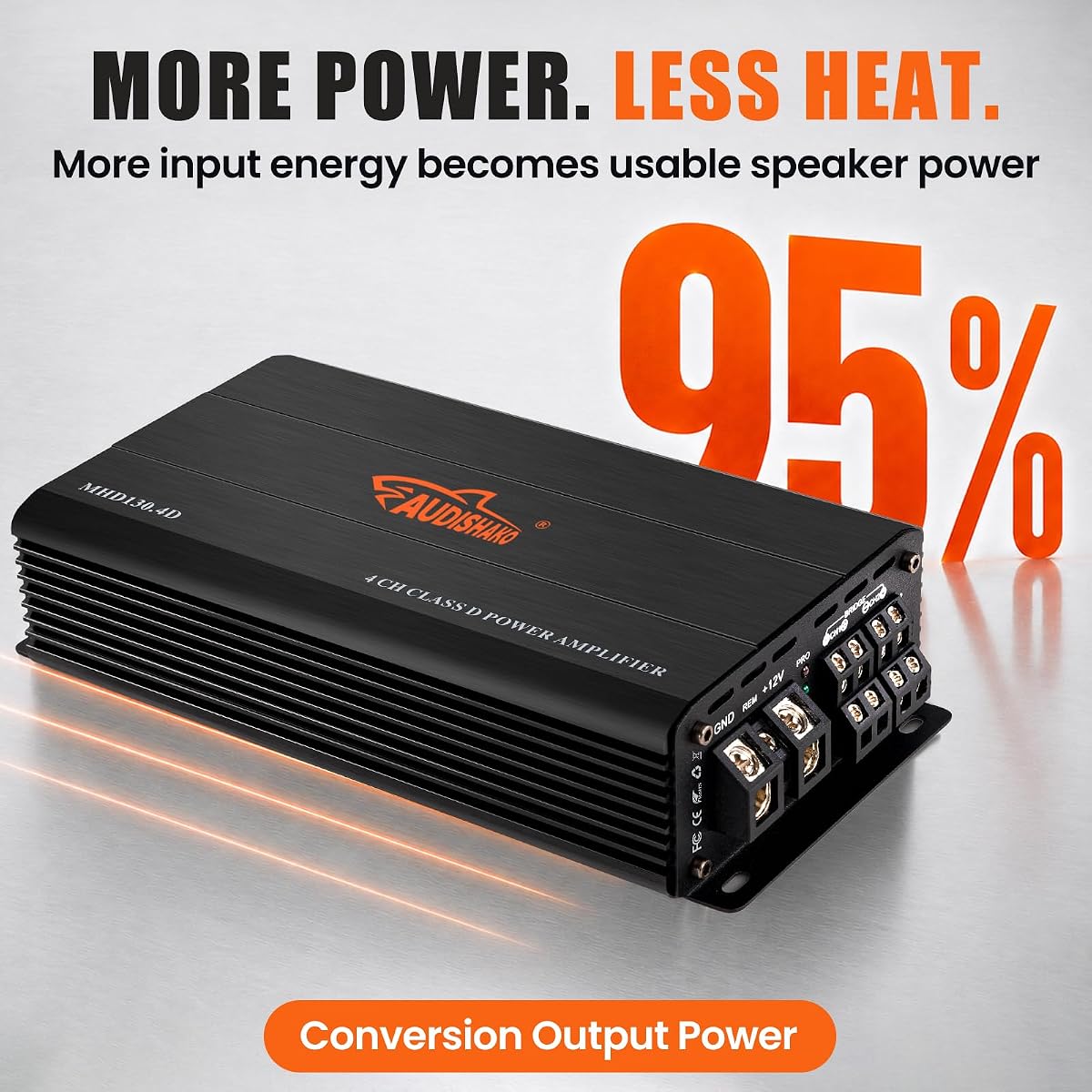

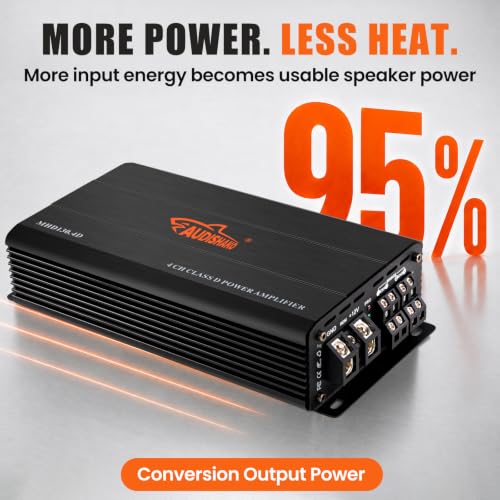

• Class D design runs up to 95% efficient, with an aluminum chassis to dissipate heat
• RCA inputs with 0.25–8V sensitivity work with aftermarket head units, DSPs, and line output converters
• Compact size (8.66 x 4.33 x 1.97 in) fits easily under seats or in trunks

Specifications

ASIN

B0DWSYRL1D

Model

MHD130-4D

Voltage

12 volts_of_direct_current

Brand Name

AUDISHAKO

Unit Count

1 Count

Part Number

MHD130-4D

Manufacturer

AUDISHAKO

Output Power

2400 watts

Material Type

Aluminum

Mounting Type

Surface Mount

Item Highlight

Infineon IRS2093M, 2/4 Ohm Stable, RCA Input, HP/LP/Full 50-250Hz Crossover, Built for Front & Rear Speakers, MOSFET Power

Item Dimensions

8.66 x 4.33 x 1.97 inches

Number of Items

1

Number of Packs

1

Customer Reviews

4.5 4.5 out of 5 stars (62) 4.5 out of 5 stars

Best Sellers Rank

#27,979 in Electronics (See Top 100 in Electronics) #45 in Car Multichannel Amplifiers

Package Type Name

Box

Specification Met

FCC

Number of Channels

4

Included Components

MHD130.4D Car Amplifier, Manual, 35a Fuse X2, Installation Screws
