Uimoso Linear Rail Kit HGR20 2Pcs 2000 mm (78.74 in) Guide Rails with 4 Slide

Listed on eBay by bungolawing · 99.8% positive

Landed price to your door

$216

Indicative price. Stores change prices, so the final amount is the store's price on the day we buy — we tell you before charging any difference.

Economy shipping · ~3.5 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

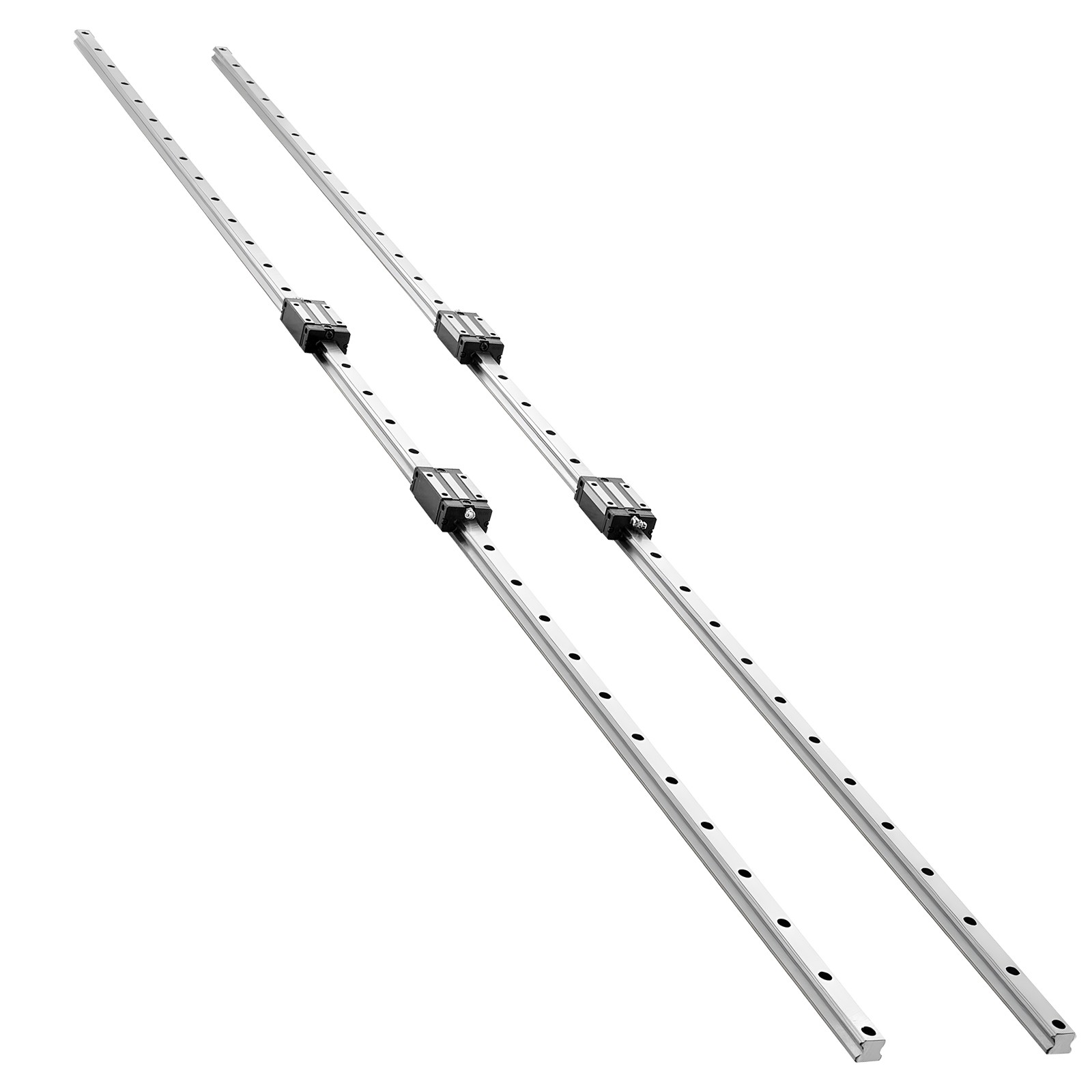

This is a 2000 mm HGR20 linear rail kit from Uimoso, made for CNC machines, mills, drills, and 3D printers that need precise linear motion. It includes 2 hardened steel rails and 4 alloy steel ball-bearing slide blocks (HGH20CA), plus 68 end caps and 4 rail clamps for a complete setup. The electroplated finish resists rust even in humid spaces, while tight straightness tolerance (0.1 mm/2000 mm) keeps motion smooth and accurate.

2 linear rails, 2000 mm (78.74 in) each, model HGH20CA-2000L, with 4 matching HGH20CA slide blocks
Medium-carbon steel rails, HRC58–62 hardness, electroplated coating (10+ μm) for rust and corrosion resistance
Alloy steel slide blocks with ball bearings for smooth, low-friction, quiet motion
Straightness of 0.1 mm over the full 2000 mm length, surface finish 0.1–0.22 μm
Static load capacity 27.76 kN (180 kg), dynamic load capacity 17.75 kN (116 kg)
Kit includes 68 end caps and 4 rail clamps; fits CNC, milling, drilling and 3D printer setups

Specifications

MPN: ZXDGHGR20MM2WMRB6001
UPC: 199413432154
Brand: Uimoso
Diameter: Ø 0.98 in/25 mm
Material: Medium Carbon Steel & Aluminum
Quantity: 2 pcs
Rail Length: 78.74 in/2000 mm
Straightness: 0.1 mm/2000 mm
Surface Finish: 0.1–0.22 μm
Slide Block Type: HGH20CA
Item Model Number: HGH20CA-2000L
Static Motion Load Capacity: 27.76 kN/180 kg
Dynamic Motion Load Capacity: 17.75 kN/116 kg
