2" Inch SS 12V DC NORMALLY OPEN Stainless Steel Electric Solenoid Valve 12 VDC

About this item

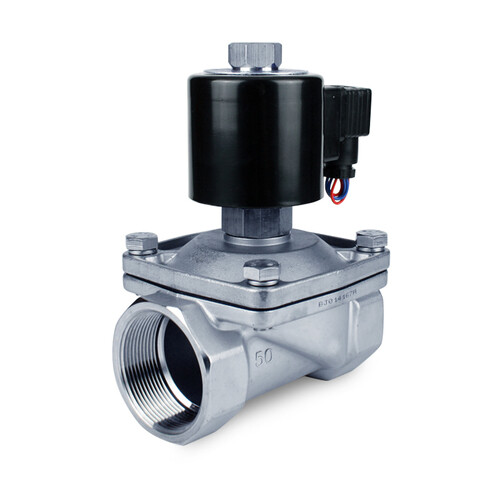

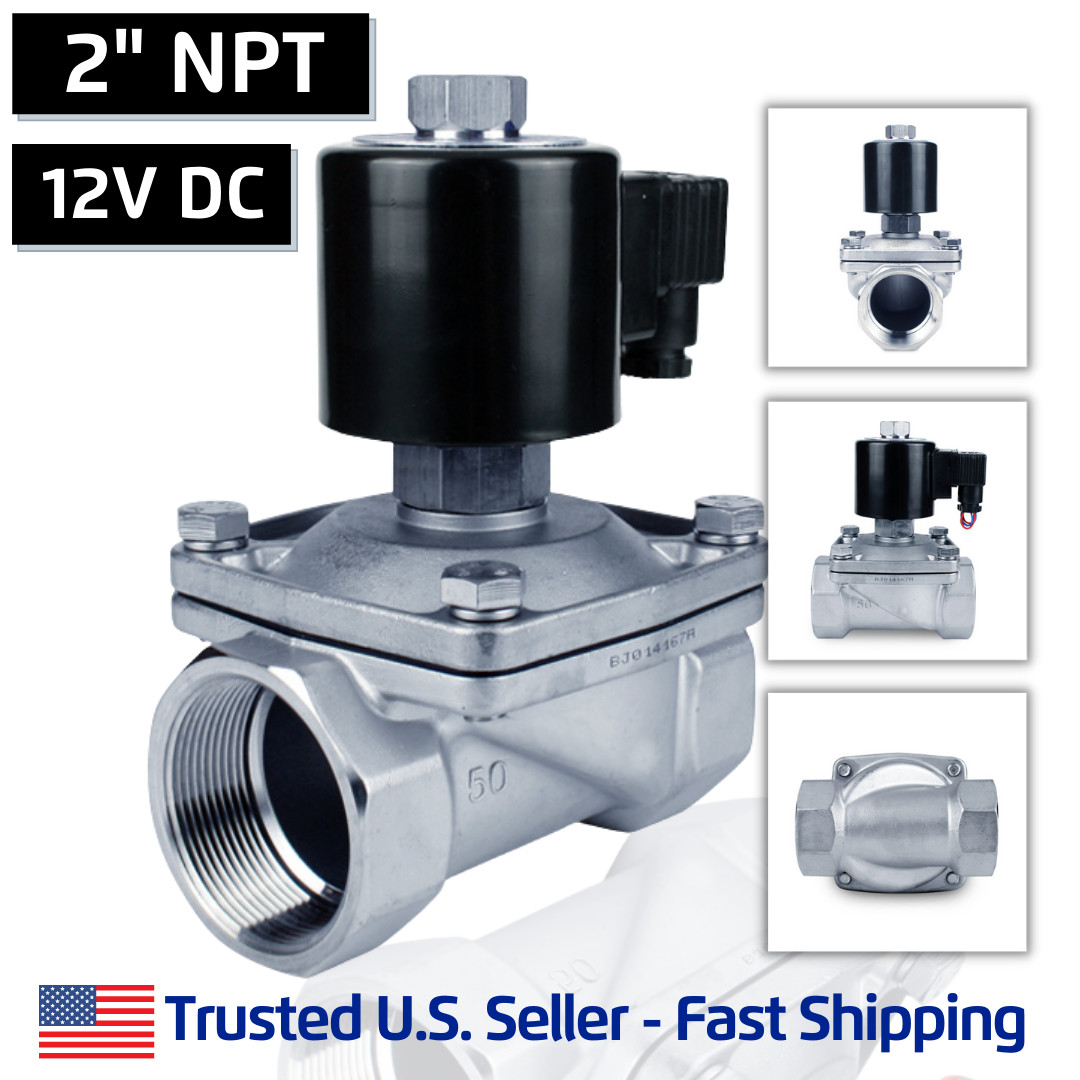

This is a 2-inch stainless steel 304 solenoid valve from Atlantic Valves (MPN NOS2-12V), built normally open so it stays open until 12V DC power shuts it. It needs no minimum pressure to work, covers a 0–90 PSI range, and handles water, air, or fuel at temperatures from 15°F to 250°F. Inside it uses a Viton diaphragm and a semi-direct lift mechanism with a DIN coil connector, giving fast action in under a second. Mounting coil-up is best, though it can be installed in other positions, and a pre-filter is recommended to keep the diaphragm clean.

• 2" FNPT stainless steel 304 solenoid valve, normally open type (closes when powered)
• Runs on 12V DC, draws 40 watts, works with water, air or fuel
• No minimum pressure needed — handles 0 to 90 PSI, gravity-feed capable
• Viton diaphragm, semi-direct lift design, Cv value 45, 50mm orifice
• Operating temp 15–250°F, fast response under 1 second, polarity can be reversed
• Size: 5.30" port to port, 4.25" wide, 7.50" tall, weighs about 7 lb 8 oz

Specifications

MPN

NOS2-12V

Brand

Atlantic Valves

Voltage

12 Volts DC

Material

Stainless Steel 304

PSI Range

0 - 90 PSI (No Minimum Pressure)

Port Size

2'' Inch

Temp Range

15 – 250F

Operation Type

Normally Open
