VFD 5.5KW 7.5HP 220V 3 Phase Variable Frequency Drive Inverter CNC

About this item

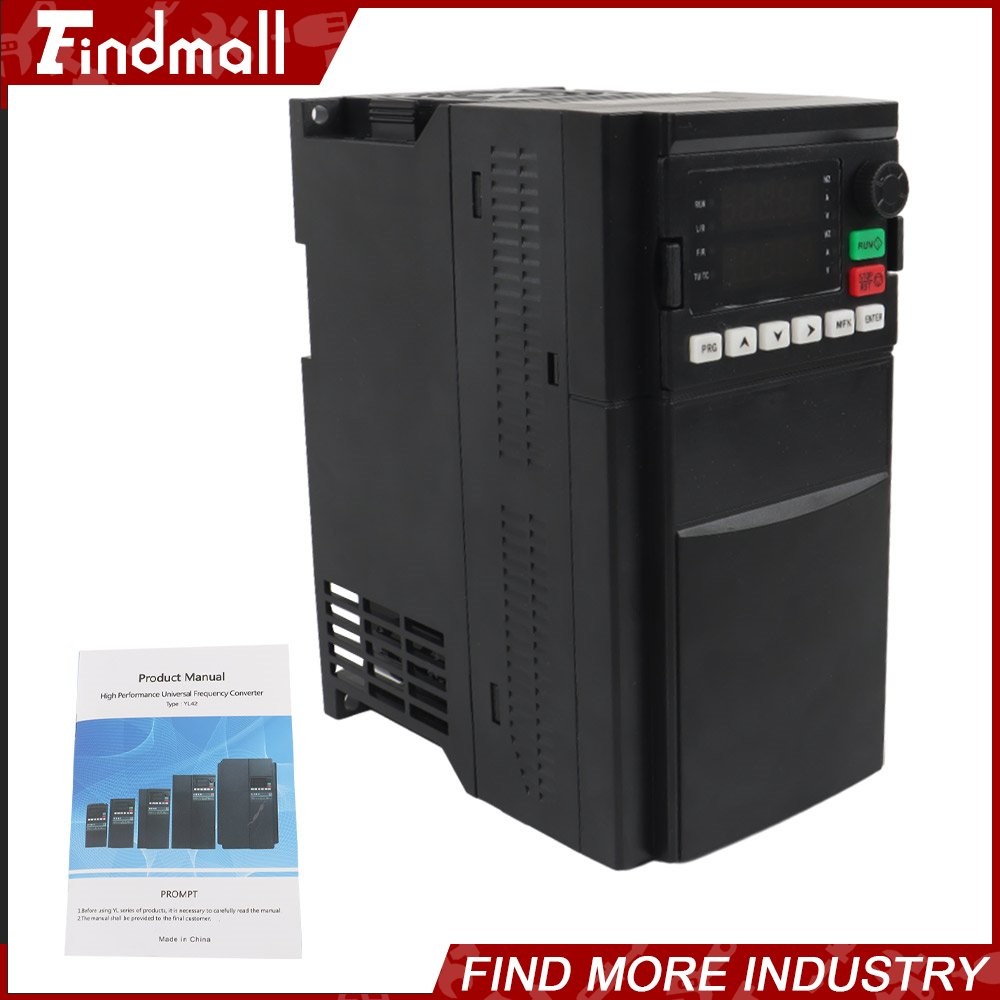

This is a findmall variable frequency drive (VFD), 5.5kW/7.5HP rated, converting 220V single or 3-phase input into a stable 3-phase 220V output for motors and CNC spindles. It uses DSP vector control for smooth, high-torque performance at low speeds, and supports remote control via an external potentiometer or RS485/MODBUS link. The unit includes multiple safety protections (short-circuit, over-current, over/under-voltage, overheat, overload) and a ventilated casing designed to reduce noise and heat buildup. Rated current is 25A maximum, with motor compatibility up to 5HP per the manufacturer's spec.

• findmall VFD, model 662428 — 5.5kW (7.5HP) rated, 220V 3-phase output
• Input: 220VAC ±5%, single or 3-phase (R/T for 1-phase, R/S/T for 3-phase)
• Input frequency 47-63Hz, output frequency 0-400Hz (standard 50/60Hz motor setup)
• Max rated current 25A; DSP vector control gives strong torque even at low motor speed
• Supports external potentiometer control and RS485/MODBUS communication
• Built-in protections: short-circuit, phase loss, over-current, over/under-voltage, overheat, overload

Specifications

MPN

662428

Type

Variable Frequency Drive

Brand

findmall

Power

5.5kW

Voltage

220V 1or3 phase input-5.5kw(7.5hp)

Warranty

1 Year

Rated Load

7.5 HP

Inpute Phase

1 or 3 phase

Output Phase

3 Phase

ated current

25A

Input valtage

220VAC(, /-5%) 1 or 3 phase

output valtage

3 phase 220v

input Frequency

47-63Hz

Number Of Phases

3-Phase

output frequency

0-400Hz, 0-50Hz/60Hz

Country of Origin

United States

Working Temperature

-10~40 ℃

Applicable motor horse-power

≤4 KW
