STEPPERONLINE Nema23 Stepper Motor 340oz.in 4A 8mm Shaft 57x82mm CNC Mill Router

Listed on eBay by mybotonline · 100% positive

Landed price to your door

$70

Indicative price. Stores change prices, so the final amount is the store's price on the day we buy — we tell you before charging any difference.

Economy shipping · ~1.2 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

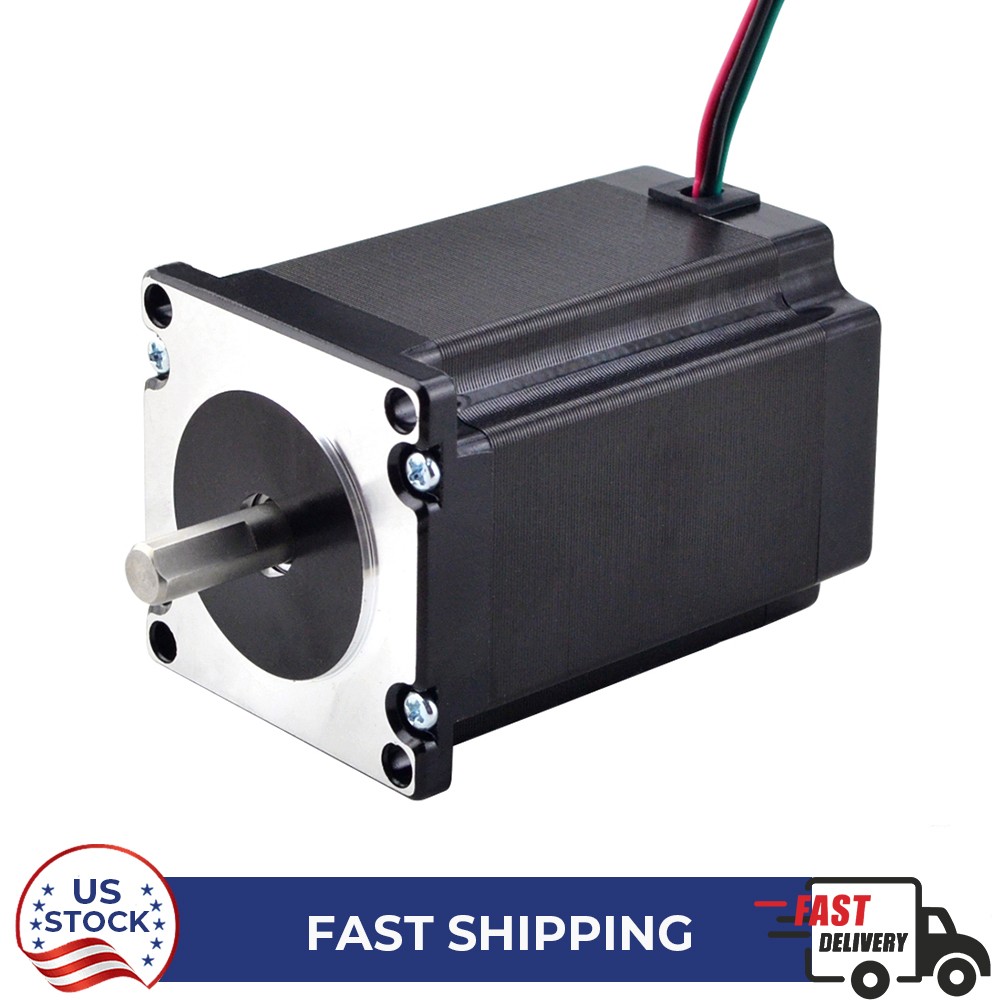

This is a NEMA23 size bipolar stepper motor (model 23HS32-4004S) built for CNC mills, routers, and other motion control projects needing strong, accurate torque. It delivers 340oz.in (2.4Nm) of holding torque at 4A per phase, with a 1.8° step angle giving 200 steps per revolution. The 8mm D-cut shaft (21mm length, 15mm flat) and 57x82mm frame fit standard NEMA23 mounts, and it comes wired with 4 color-coded 300mm leads for easy connection to your driver.

NEMA23 bipolar stepper motor, model 23HS32-4004S, 340oz.in (2.4Nm) holding torque
Rated 4A per phase, 0.9 ohm phase resistance, 3.4mH ±20% inductance, runs on 24-48VDC
1.8° step angle (200 steps/rev) for precise positioning on CNC and router builds
8mm D-cut shaft, 21mm long with 15mm flat, frame size 57x57mm, body length 82mm
4-lead wiring (300mm leads): Black=A+, Green=A-, Red=B+, Blue=B-
Weighs 1.2kg, made in China

Specifications

EAN: 0749346653081
MPN: 23HS324004S
UPC: 749346653081
Brand: StepperOnline
Model: 23HS324004S
Shaft Type: D-cut
Current Type: DC
Holding Torque: 2.4Nm(339.79oz.in)
Shaft Diameter: 8mm
Full Step Angle: 1.8° (200 Steps)
Country of Origin: China
Resistance per Phase: 0.9ohms
Wiring Configuration: 4-Wire Bipolar
Rated Current per Phase: 4.0A
Actual Rated Input Voltage: Bipolar
Nominal Rated Input Voltage: 24-48VDC
