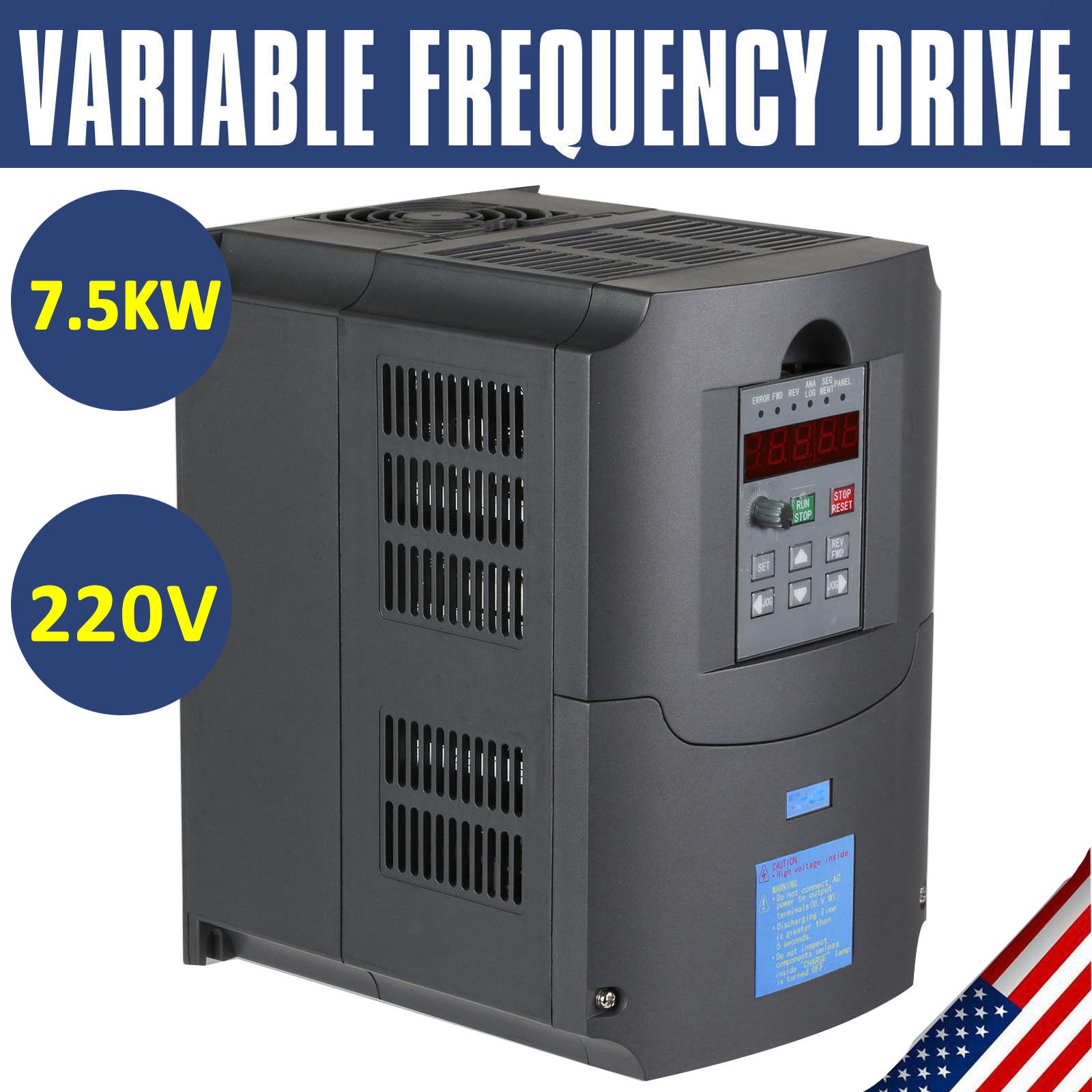

7.5KW 10HP Variable Frequency Drive Converter Single To 3 Phase VFD 220V 34A

Listed on eBay by superhappyfactory · 99.9% positive

Landed price to your door

$412

Indicative price. Stores change prices, so the final amount is the store's price on the day we buy — we tell you before charging any difference.

Economy shipping · ~8.5 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

This VFD takes a single-phase 220V supply and drives 3-phase 220V motors up to 7.5KW (10HP), acting as both a phase converter and speed controller. It uses SPWM control with an output range of 0–400Hz, and includes full protection against overcurrent, overvoltage, overheat and phase loss. Note: it only works with 3-phase asynchronous motors, and is commonly used for compressors, CNC machines, pumps, lathes and conveyors.

Converts single-phase 220V power into clean 3-phase 220V output — 7.5KW / 10HP rated
Input: 220VAC (±5%), works on 1 or 3 phase (single-phase wiring uses R & S terminals); output max 34A per phase
Output frequency 0–400Hz, input frequency 48–63Hz, SPWM control for smooth speed adjustment
Built-in protection: short-circuit, phase loss, overcurrent, overvoltage, undervoltage, overheat and overload
Works only with 3-phase asynchronous motors — good for compressors, CNC routers, spindle motors, grinders, pumps, lathes, mills, hoists and conveyors
Dimensions: 38 x 29 x 29 cm (L x W x H)

Specifications

MPN: VFDST-S5
UPC: 0832419275768
Brand: zb-equipment
Model: GEGS-753
Power: 7.5KW
Series: 7.5KW inverters
Humidity: 0-95% Relative Humidity (without dew)
Dimension: 38 x 29 x 29 cm (L x W x H)
Rated Load: 10 HP
Certificate: CE certificated
Input Power: 220V class：220±15%
Control Mode: SPWM
Inpute Phase: 1 or 3 phase
Output Phase: 3 Phase
Power Rating: 7.5 KW
Input Voltage: 220 V
Modified Item: No
Output Voltage: 208-240VAC ( analogous to Input Voltage )
Inpute Frequency: 48-63 Hz
Number Of Phases: 3-Phase
