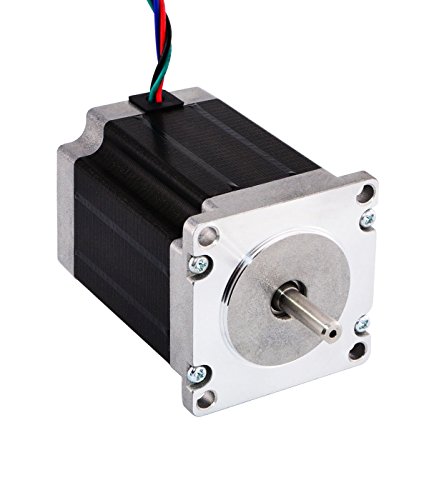

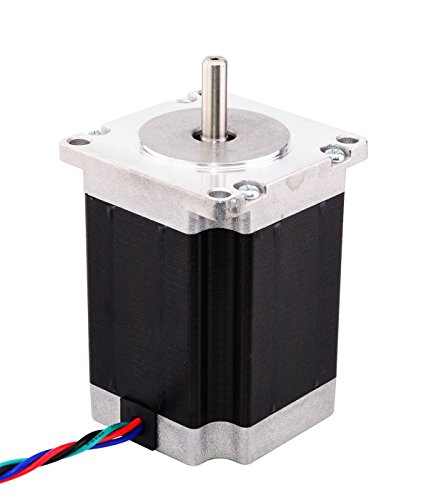

STEPPERONLINE Nema 23 Stepper Motor 3.0A 269oz.in/1.9Nm 76mm Length Step Motor for CNC Mill Lathe Router

4.6 · 87 reviews

Listed on Amazon US

Landed price to your door

$79

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Economy shipping · ~1.3 kg · faster options at checkout

Includes shipping and taxes.

View on the store

About this item

This is a NEMA 23 bipolar stepper motor built for CNC mills, lathes, and routers. It delivers 1.9Nm (269oz.in) of holding torque with a 6.35mm single shaft, running on 3.0A at 1.12 ohms resistance. The 1.8° step angle gives you 200 steps per revolution for precise motion control.

Holding torque: 1.9Nm (269oz.in)
NEMA 23 bipolar frame, 2.24" x 2.24" x 3.0" (76mm length), 4-wire
Single shaft, 6.35mm diameter
1.8° step angle, 200 steps per revolution
Rated current 3.0A, winding resistance 1.12 ohms

Specifications

UPC: 715776363081
ASIN: B077Z5QJCL
GTIN: 715776363081
Brand: STEPPERONLINE
Model: 23HS30-3004S
Speed: 30000 rpm
Voltage: 3.36 volts
Material: Alloy Steel, Aluminum, Copper, Metal
Brand Name: STEPPERONLINE
Horsepower: 1.9 watts
Item Weight: 2.3 pounds
Part Number: 23HS30-3004S
Manufacturer: STEPPERONLINE
Material Type: Alloy Steel, Aluminum, Copper, Metal
Shaft Diameter: 6.35 millimeters
Customer Reviews: 4.6 4.6 out of 5 stars (87) 4.6 out of 5 stars
