High Precision Load Cell Weighing Sensor For Mixing Station Easy To Use

Listed on eBay by autobuycentre · 99.6% positive

Landed price to your door

$72

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $134Standard $78~0.5 kg

Includes shipping and taxes.

View on the store

About this item

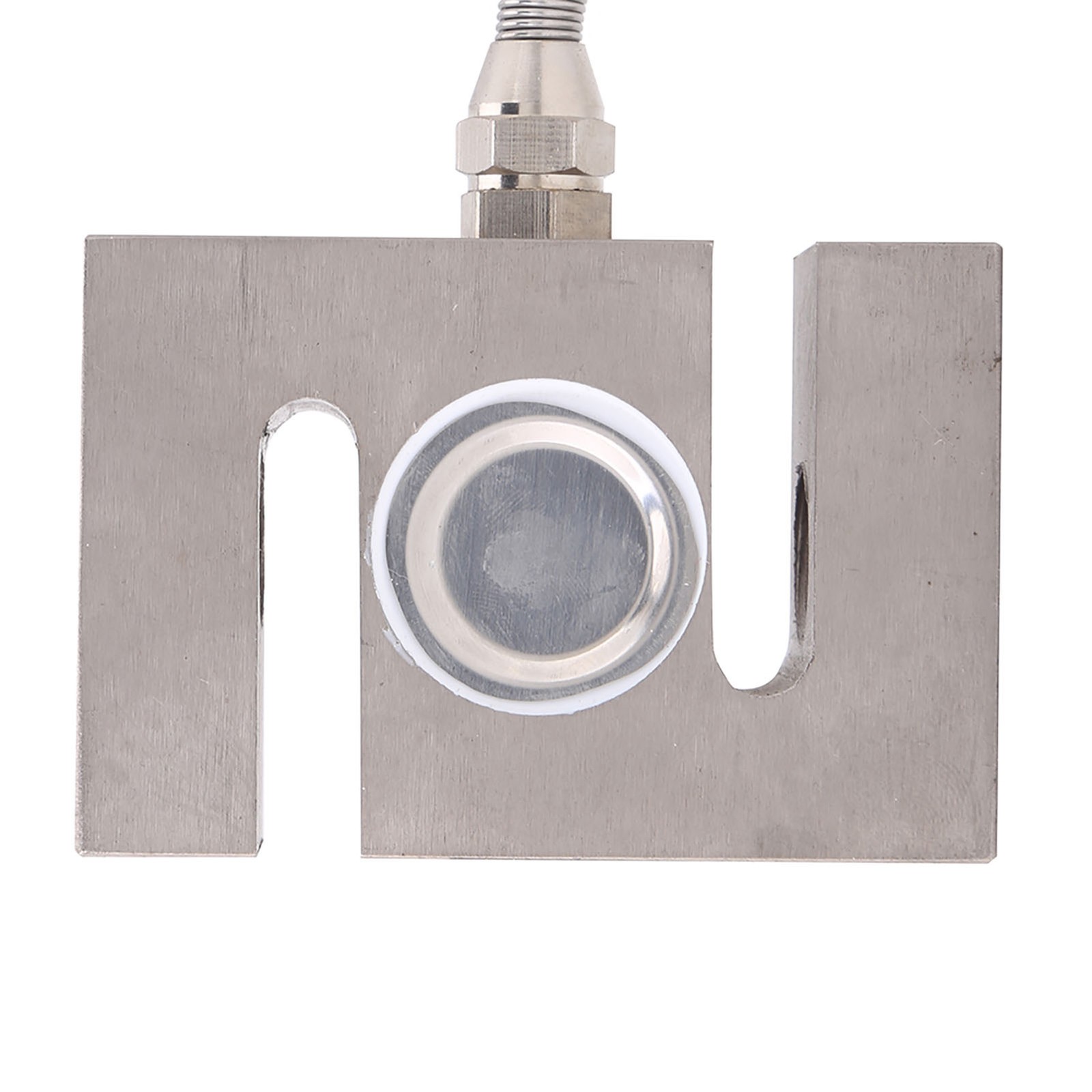

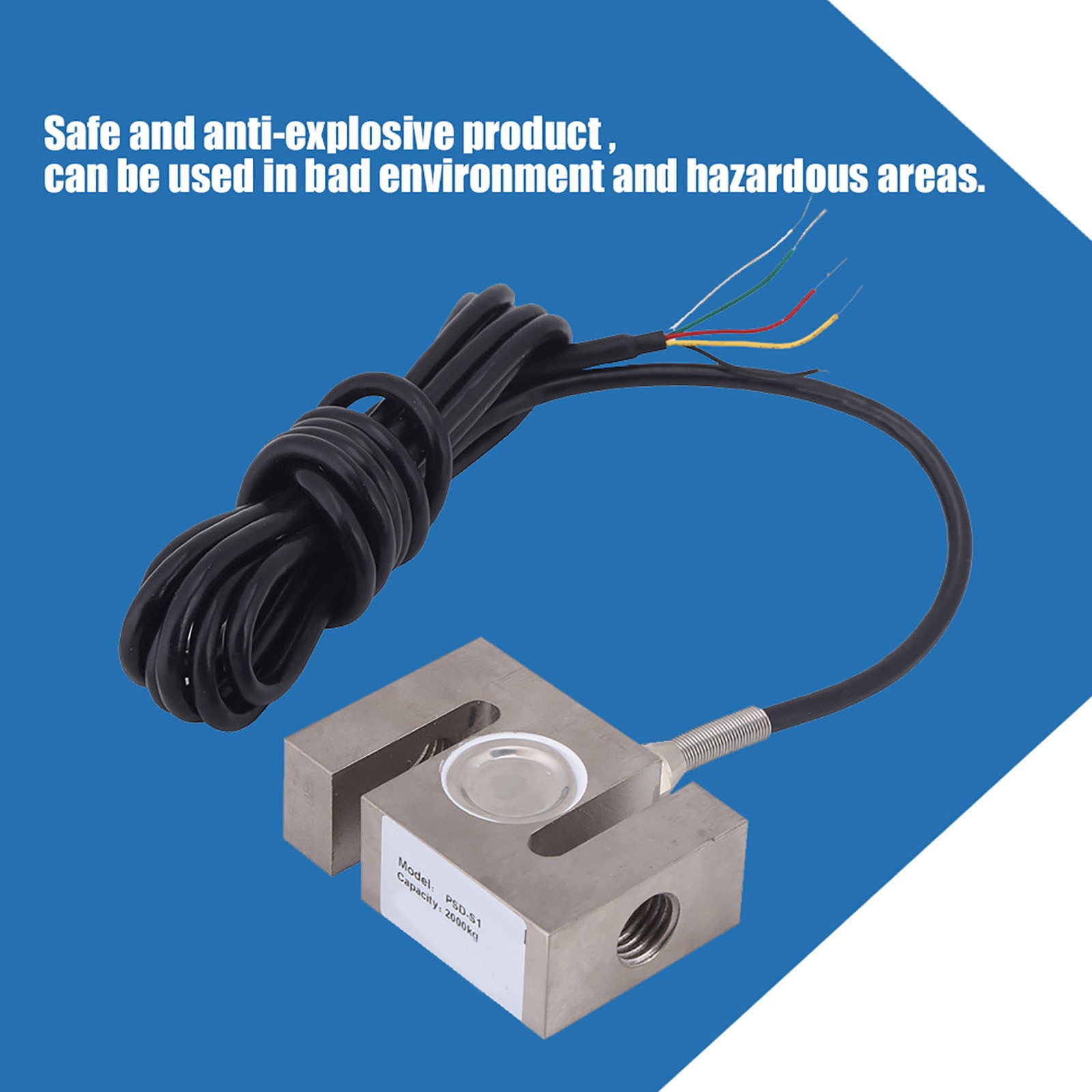

This is a PSD-S1 metal load cell sized for 2000kg loads, made in China. It's sealed to IP67 standard, so it holds up against oil, water and corrosive conditions on site. Wiring is straightforward with color-coded input, output and ground wires, and the sensor delivers stable, precise readings for mixing stations, batching machines and asphalt plants. Each order includes one sensor unit weighing about 712g.

Model PSD-S1 load cell, metal body, rated for a 2000kg measuring range
IP67 rated: oil-proof, waterproof and corrosion-resistant for rough industrial sites
Analog output with 2.0mv/v sensitivity, linearity ±0.02%F.S., repeatability ±0.01%F.S.
Input impedance 350±5Ω, output impedance 350±5Ω, drift ±0.02%F.S.
4-wire hookup: Red(+)/Black(-) input, Green(+)/White(-) output, Yellow for ground
Built for mixing stations, batching machines and asphalt plants; 1 sensor per pack, ~712g

Specifications

UPC: 7904821849202
Type: Weighting Sensor
Brand: Unbranded
Model: PSD-S1
Process: film
Delaying: ±0.02（%F.S.）
Drifting: ±0.02%F.S
Material: Metal
Linearity: ±0.02（%F.S.）
Sensitivity: 2.0mv/v
Output signal: analog
Repeatability: ±0.01（%F.S.）
Input impedance: 350±5Ω
Measuring Range: 2000kg
Output impedance: 350±5Ω
Protection grade: IP67
Country of Origin: China
