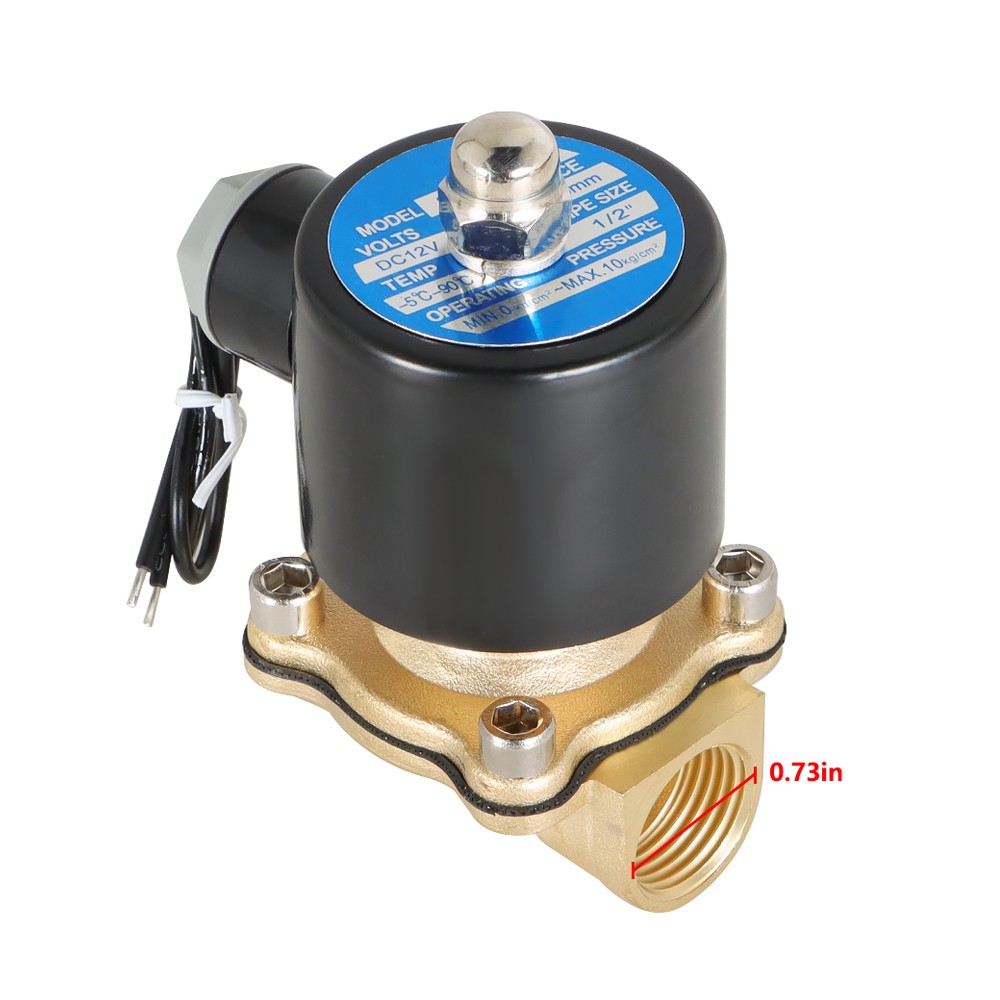

1/2 inch 12V DC Brass Electric Solenoid Valve NPT Gas Water Air Normally Closed

Listed on eBay by waltyotur · 99.8% positive

Landed price to your door

$50

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $109Standard $55~0.5 kg

Includes the item, international shipping, customs and handling.

Ish7anli does not sell or own this product. You are asking us to buy it for you from eBay and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

A brass 12V DC solenoid valve built for 1/2" NPT plumbing lines, staying shut until power is applied. It's rated for pressures up to 145 psi (10 bar) or vacuum, and its FKM diaphragm with stainless steel plunger lets it handle water, air, gases, diesel, gasoline and glycol. The wide internal orifice keeps flow strong even at low pressure, making it a solid pick for gravity-fed systems. Comes as a single unit, model WA1019898UR.

1/2" NPT female inlet and outlet, brass body, normally closed design
Runs on 12V DC, draws 1.4A, standard lead-wire coil (DIN connector version also available)
Handles 0 to 145 psi (0 to 10 bar) or vacuum, media temp from -5°C to 100°C
Works with water, air, gases, diesel, gasoline and glycol - FKM diaphragm, stainless steel plunger
Wide 5/8" (16mm) internal orifice, Cv 4.8, good for low-pressure and gravity-feed setups
Height 4", length 2-3/8", width 2" (or 1-3/4" for DIN coil), weighs about 1 lb 8 oz - model WA1019898UR by waltvotur

Specifications

MPN: WA1019898UR
Temp: -5° C-100° C
Type: Normally Closed
Brand: waltvotur
Amperage: 1.4 A
Quantity: 1 PC
Warranty: 1 Year
Coil Options: Lead wire coil (standard), DIN connector coil
Current Type: DC
Body Material: Brass
Specification: No
Pressure Range: 0 to 145 psi (0 to 10 BAR), Vacuum
Suitable Media: Water, Air, Gasses, Diesel, Gasoline, Glycol
Supply Voltage: 12 V
Country of Origin: United States
