UL Listed 10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, Din Rail Relay 24V

About this item

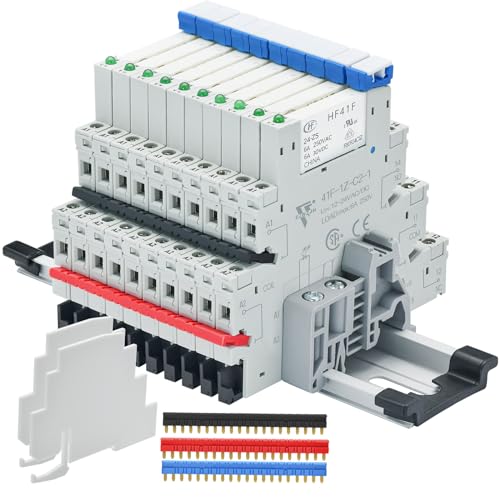

This is a 10-pack of HF41F/24-ZS miniature power relays with a 24V AC/DC coil, SPDT (1NO 1NC) configuration, and 6A contact rating — commonly used for PLC signal switching. Each relay pairs with a 41F-1Z-C2 DIN rail socket that has screw terminals and a finger-protection cover for safe wiring. The kit comes complete with DIN rails, jumpers, clips, separators and screws, and both the relay and socket carry UL listing (plus CSA, CE and VDE marks).

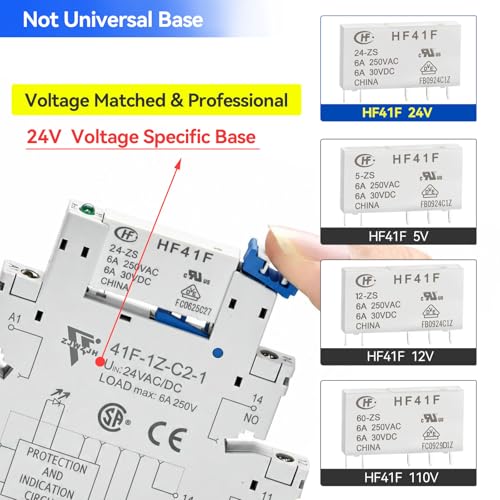

• Model HF41F/24-ZS, 24V AC/DC coil, SPDT with 1NO 1NC contacts, 5-pin terminals
• Contact rating 6A at 250VAC/30VDC; slim relay body 28x5x15mm, only 5mm wide

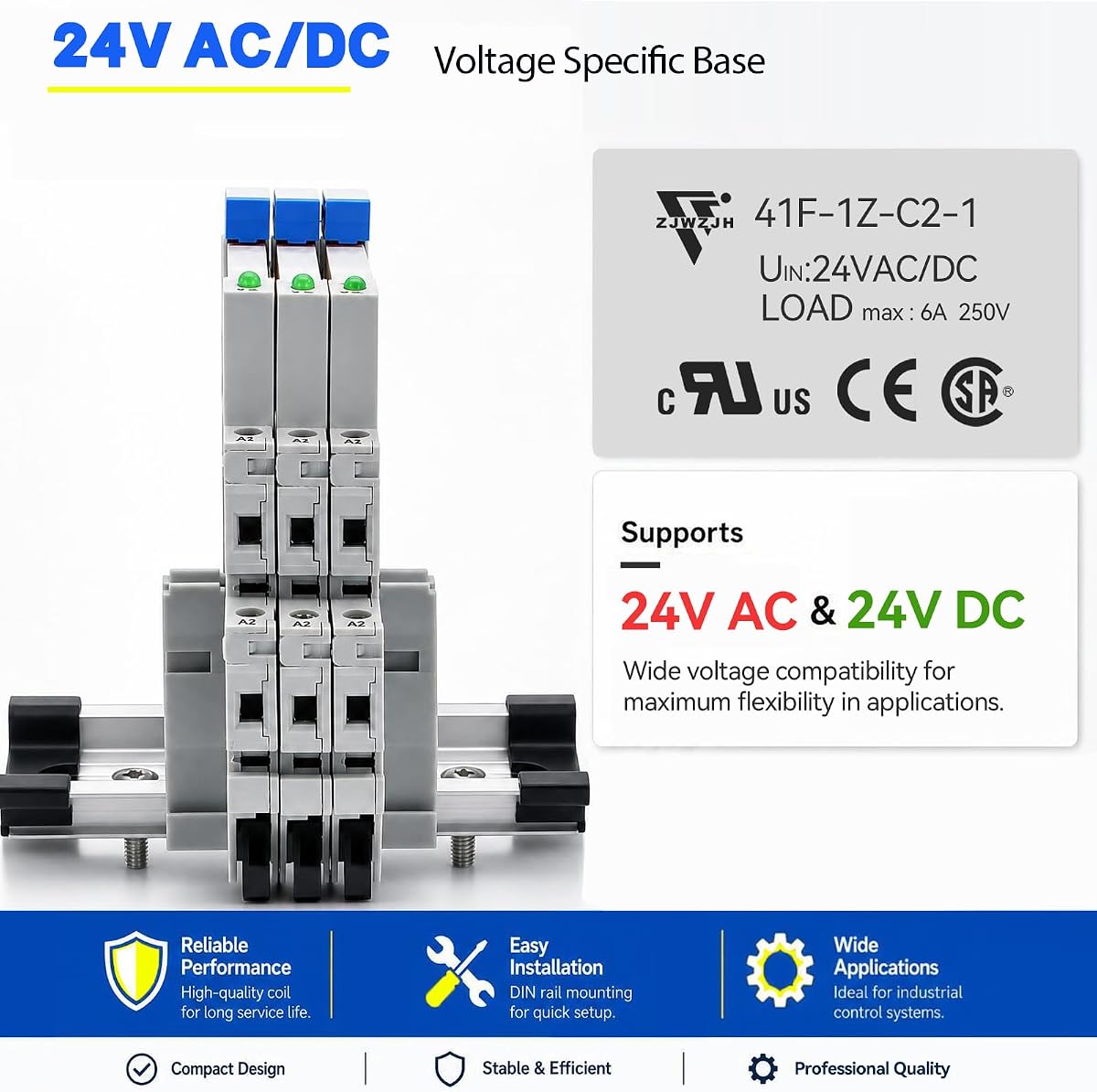

• Matching socket model 41F-1Z-C2 with screw terminals, DIN rail mount and finger-guard cover, 70.9x88.3x6.3mm

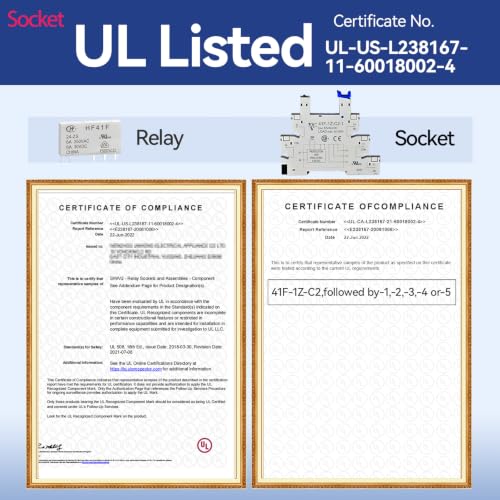

• Socket is UL/CSA and CE listed; relay itself is UL and VDE listed
• Built for 10,000,000 mechanical cycles and 300,000 electrical cycles, operating range -40°C to 70°C

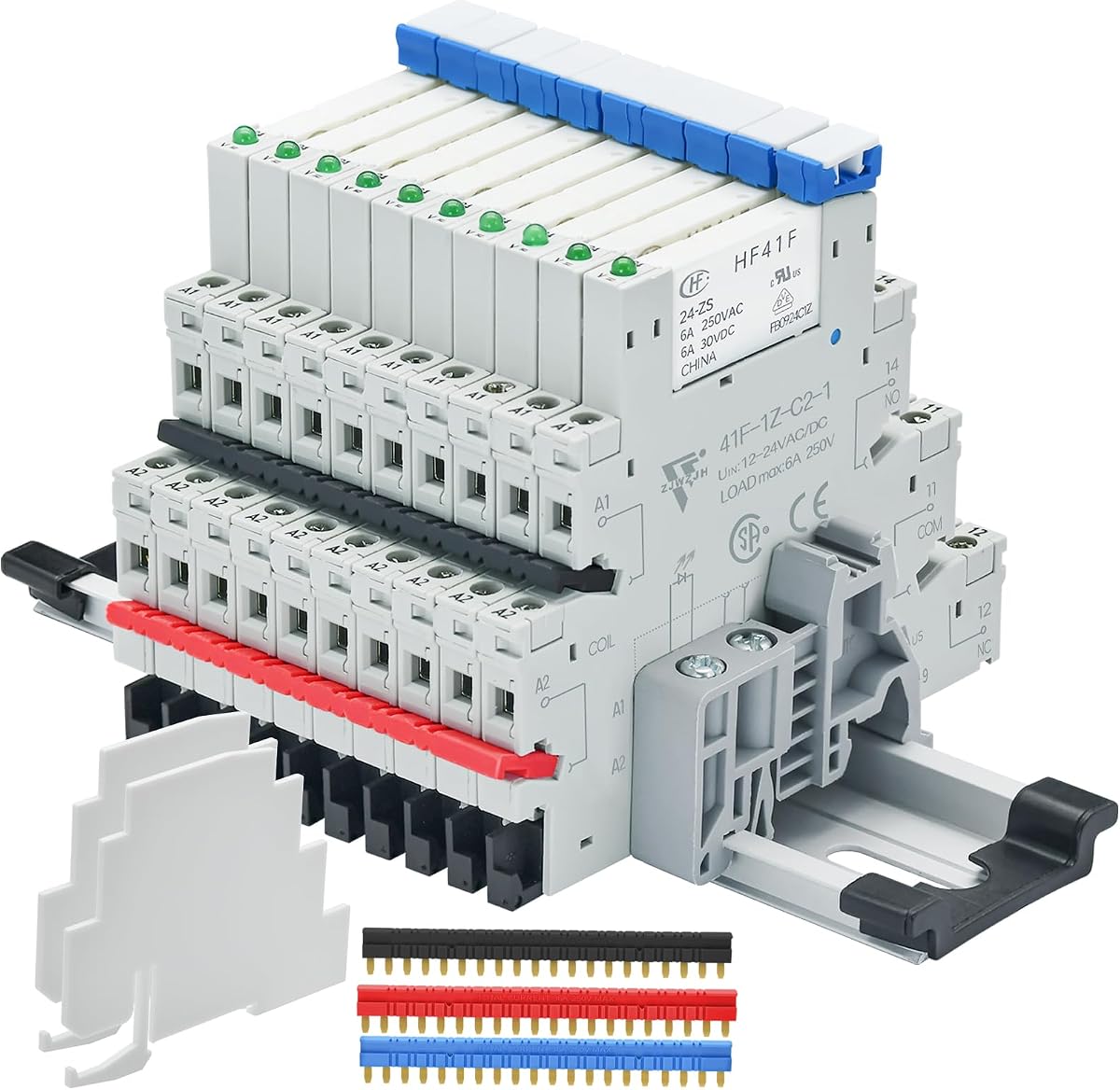

• Set includes 10 relays, 10 sockets, 2x 140mm DIN rails, 3 jumpers, 4 fixing clips, 2 separators and 4 screws

Specifications

ASIN

B0CNH5RQ38

Model

HF41F/24-10PCS

Wattage

144 watts

Brand Name

ZJWZJH

Item Weight

1.12 ounces

Part Number

HF41F/24-10PCS

Coil Voltage

24 volts

Contact Type

Spdt 1no+1nc

Manufacturer

ZJWZJH

Mounting Type

DIN Rail Mount

Connector Type

Screw

Current Rating

6 A

Operation Mode

ON-OFF

Number of Items

10

Contact Material

Silver Tin Oxide

Customer Reviews

4.5 4.5 out of 5 stars (74) 4.5 out of 5 stars

Best Sellers Rank

#19,826 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #10 in Electromechanical Relays

Specification Met

CE, CSA, UL, VDE

Included Components

10× Power Relay and Socket, 3×Jumper;2×Separator; 4×Screw;4×Fixing Clip;

Number of Terminals

1
