STEPPERONLINE Nema 23 Stepper Motor 3.0A 269oz.in/1.9Nm 76mm Length Step Motor for CNC Mill Lathe Router

4.6 · 82 reviews

Listed on Amazon UAE

Landed price to your door

$86

Confirmed with the store today. The final amount is the store's price on the day we buy it.

Express $107~1.0 kg

Includes the item, international shipping, customs and handling.

Ish7anli does not sell or own this product. You are asking us to buy it for you from Amazon UAE and deliver it to your door — you pay the store's price plus our service fee.

View on the store

About this item

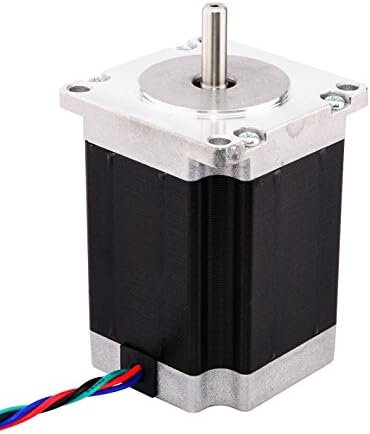

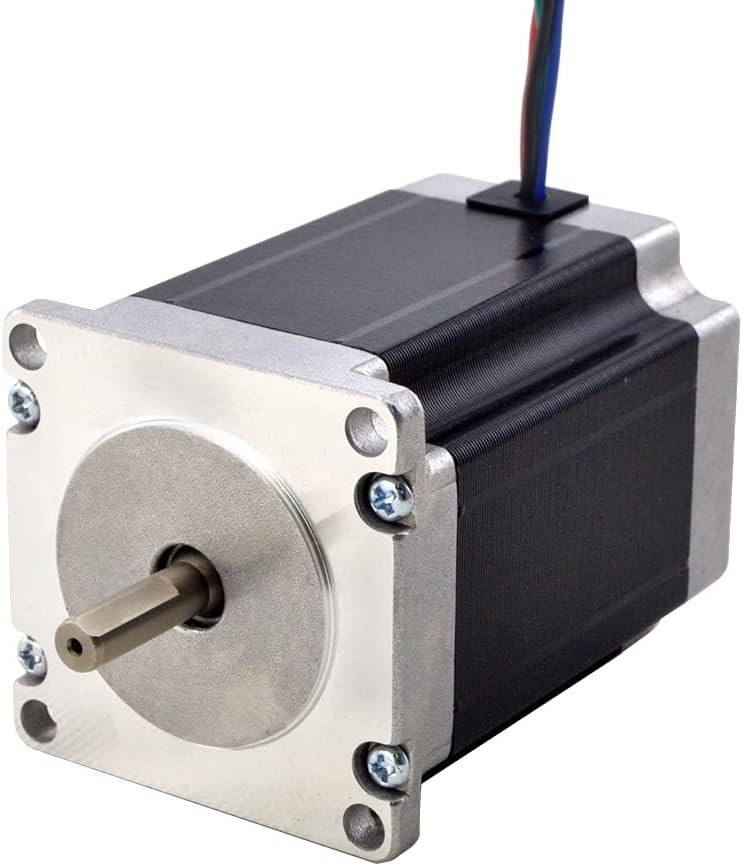

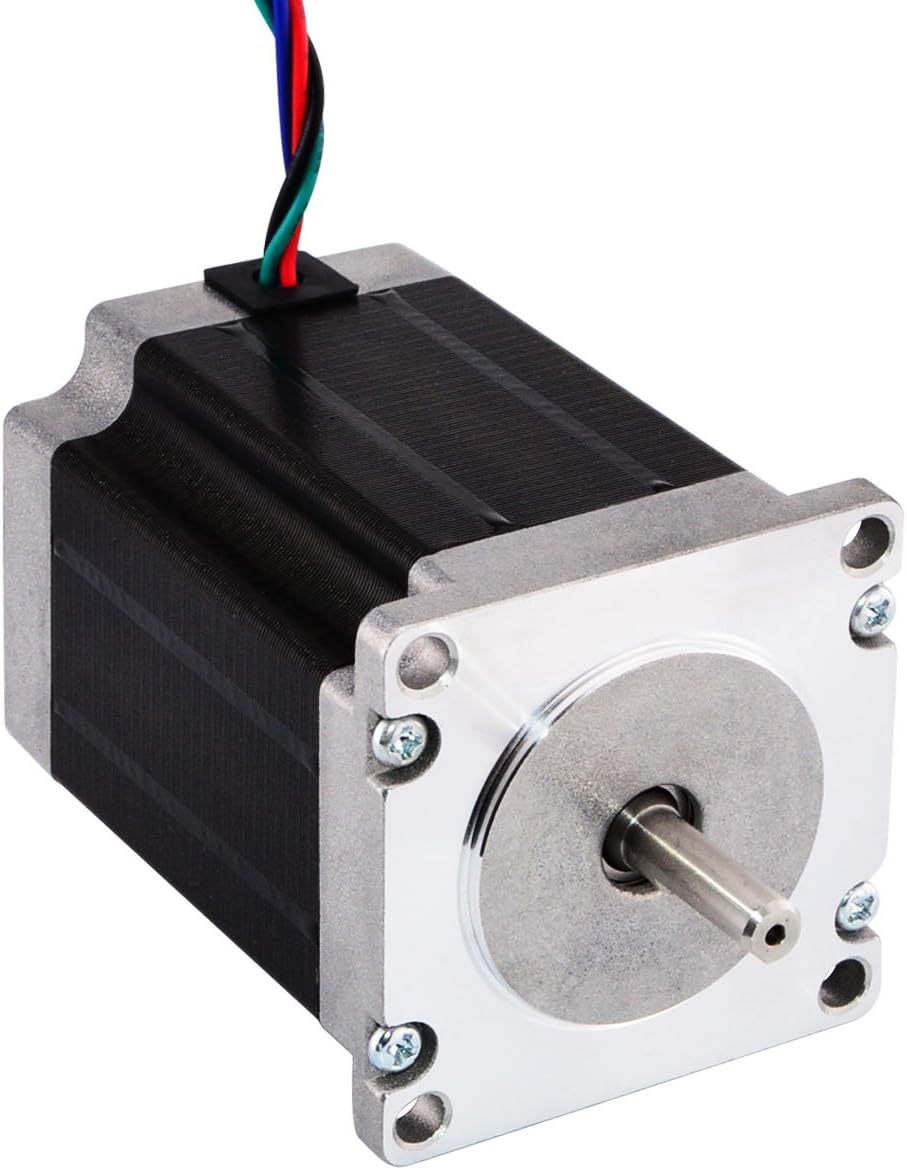

This NEMA 23 stepper motor delivers 1.9Nm (269oz.in) of holding torque with a 1.8° step angle, giving precise, repeatable motion for CNC builds. It runs on 3.0A per phase with a 6.35mm shaft (15mm D-cut) and comes wired with 4 color-coded leads at 500mm length for easy hookup. Solid steel-frame construction at 57x57x76mm and 1.2kg makes it a reliable choice for mills, lathes, and routers.

NEMA 23 bipolar stepper motor, 57x57x76mm frame, 1.8° step angle (200 steps/rev)
Holding torque 1.9Nm (269oz.in) for solid grip under load
Rated 3.0A per phase, 1.12ohm phase resistance, 3.36V, 4.8mH inductance
6.35mm single shaft, 21mm shaft length with 15mm D-cut flat
4-wire bipolar setup, 500mm leads (Black A+, Green A-, Red B+, Blue B-)
Weighs 1.2kg, part number 23HS30-3004S — fits CNC mills, lathes, and routers

Specifications

UPC: 715776363081
ASIN: B077Z5QJCL
GTIN: 715776363081
Brand: STEPPERONLINE
Model: 23HS30-3004S
Voltage: 3.36 Volts
Material: Alloy Steel, Aluminum, Copper, Metal
Brand Name: STEPPERONLINE
Horsepower: 1.9 Watts
Item Weight: 2.3 Pounds
Item weight: 2.3 Pounds
Part Number: 23HS30-3004S
Manufacturer: STEPPERONLINE
Material Type: Alloy Steel, Aluminum, Copper, Metal
Customer Reviews: 4.6 4.6 out of 5 stars (82) 4.6 out of 5 stars
Item model number: 23HS30-3004S
Product Dimensions: 10 x 20 x 37 cm; 1.04 kg
Date First Available: 21 February 2018
Is Discontinued By Manufacturer: No
