About this item

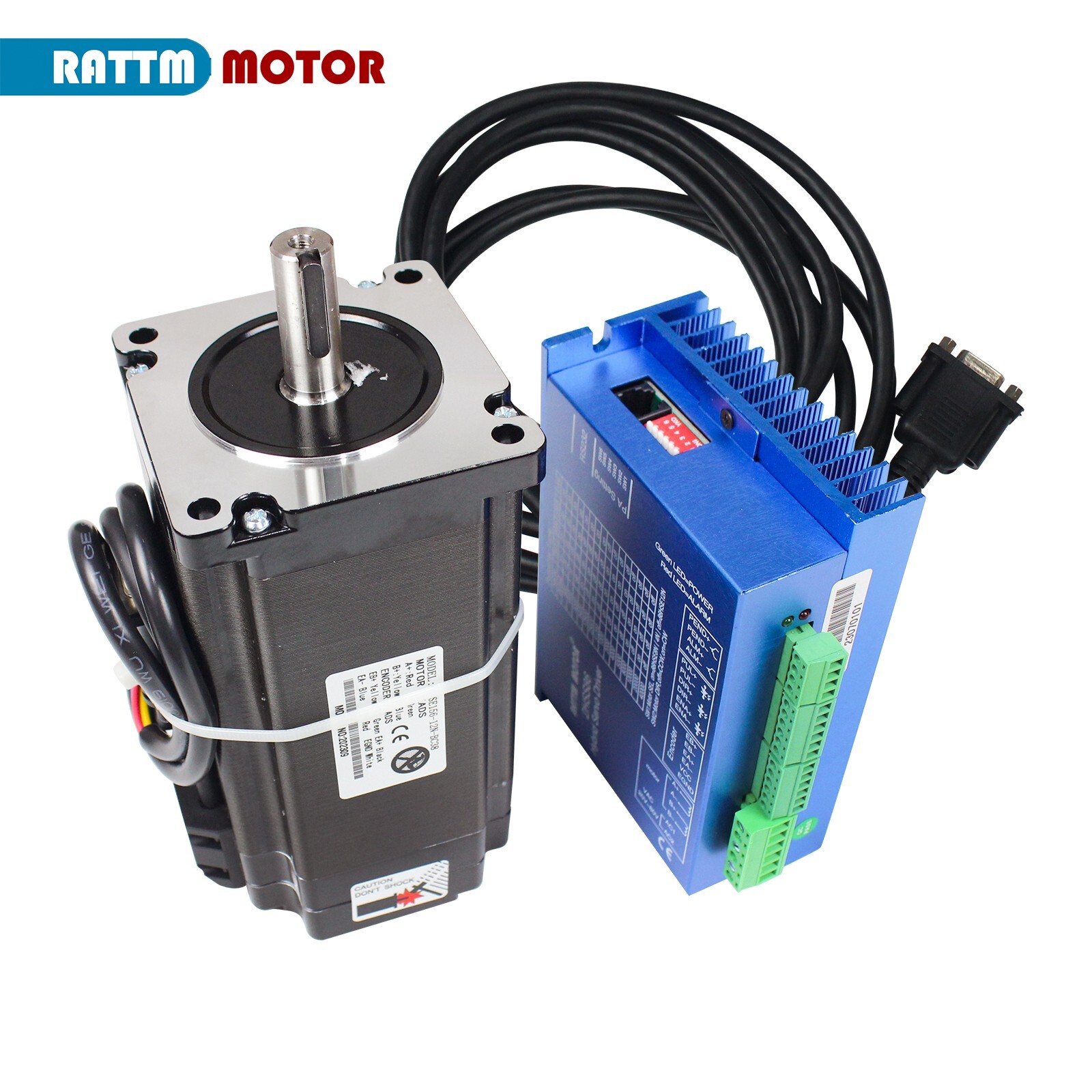

This is a complete Nema34 closed-loop stepper kit built for CNC and engraving machines that need real torque without losing steps. The 86HSE156 motor delivers 12N.m holding torque at 6A, paired with the 2HSS86 driver's 32-bit DSP vector control and 1000-line encoder feedback. The set comes with a 3m extension wire and a 400W 70V DC power supply, ready to wire in and run. Built-in alarm and position signals help you monitor the setup and keep it running safely under load.

Nema34 closed-loop stepper motor, 12N.m holding torque, size 86x86x156mm, 6A current, 1.8° step angle, 4 lead wires, insulation class B
2HSS86 2-phase hybrid servo driver with 32-bit DSP vector control, 1000-line encoder, runs on AC24-70V or DC30-100V, peak current 8A
Kit includes motor, driver, 3m extension wire and a 400W 70V DC switching power supply (110V/220V switchable AC input)
Closed-loop design prevents step loss, keeps torque high at speed, and auto-adjusts current to reduce motor heat
Built-in position and alarm output signals for machine monitoring and safety cutoff
Good fit for CNC routers, engraving and cutting machines, marking machines, and similar automated equipment

Specifications

Size: 86x86x156mm
Type: Hybrid
Brand: RATTM MOTOR
Model: 86HSE156/2HSS86
Driver: 2HSS86 2-Phase Hybrid Stepper Servo Driver
Current: 6A
Frequency: 0~200KHz
Lead wire: 4pcs
Custom Bundle: No
Modified Item: No
Holding Torque: 12N.m
Insulation Class: B
Country of Origin: China
Step Angle(degrees): 1.8
Non-Domestic Product: No
Actual Rated Input Voltage: AC24~70V or DC30V~100V.
